Connected packaging and line-end processes
We integrate cartoning, case packing, labeling, case sealing, code reading, inspection, conveying and palletizing at the end of the production line to create a continuous flow from finished product to packaged output.

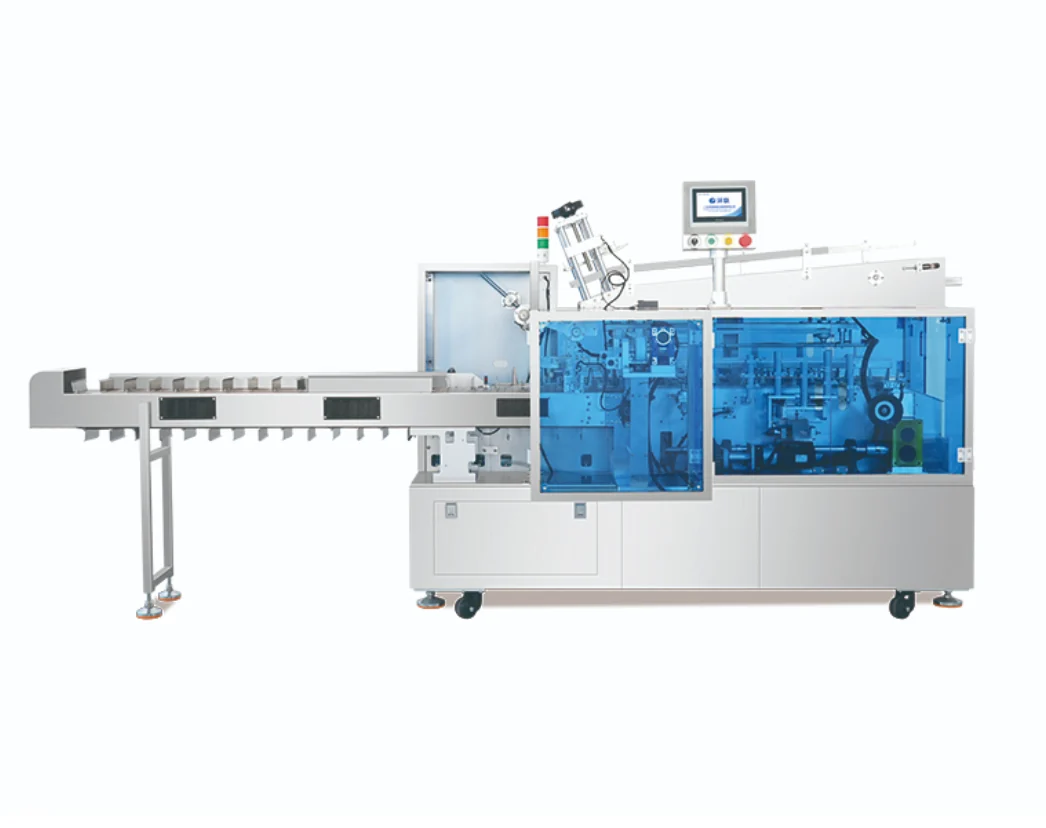

Individual products, components or sets are placed into cartons or suitable packaging containers according to the packaging requirements. Upstream conveying or robots can be coordinated with the product state, orientation and cycle time.

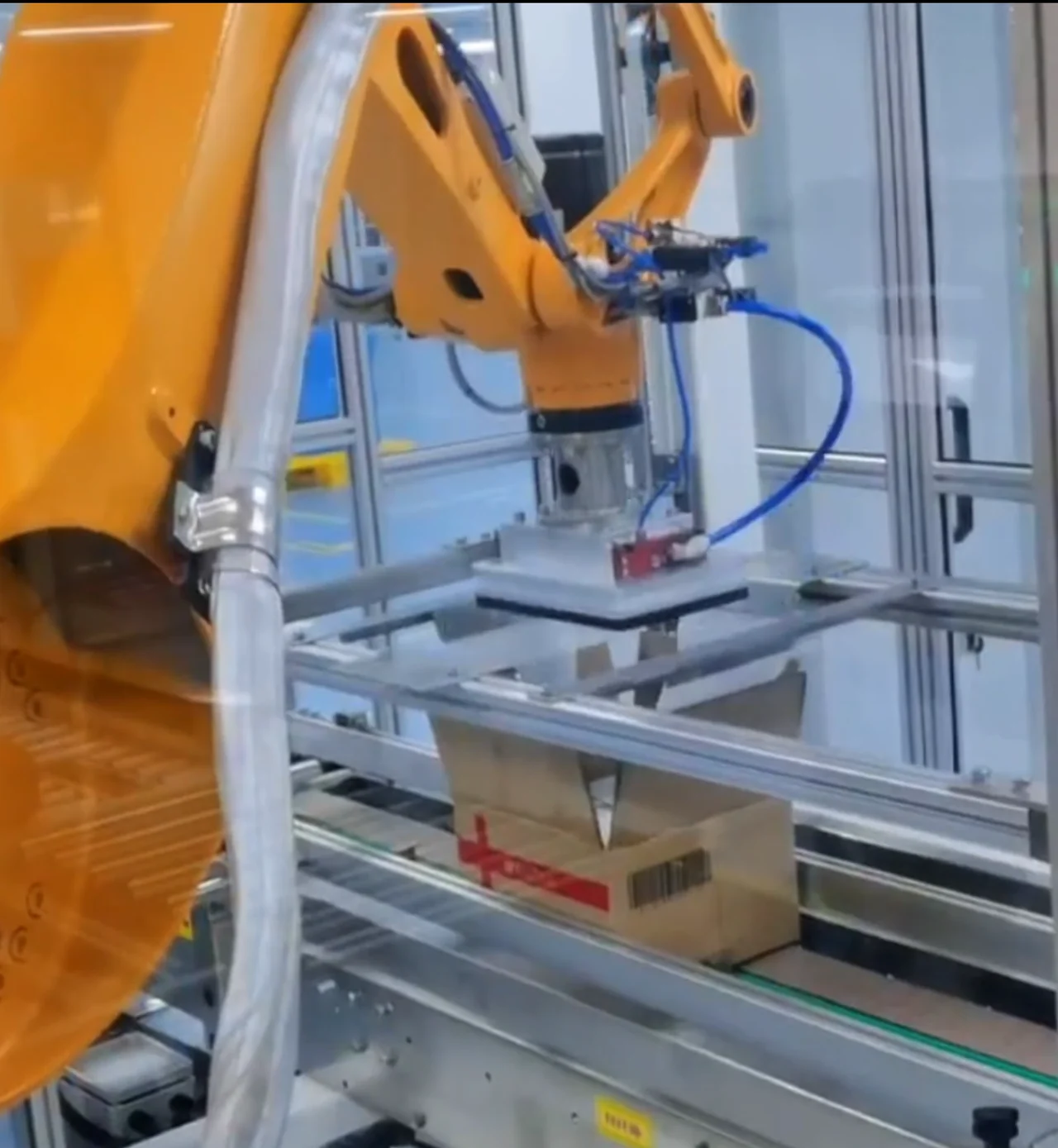

Products that have completed the preceding packaging stages are loaded into outer cases according to quantity, orientation or arrangement requirements. Conveying, positioning, robots or other case-packing mechanisms can be integrated as appropriate.

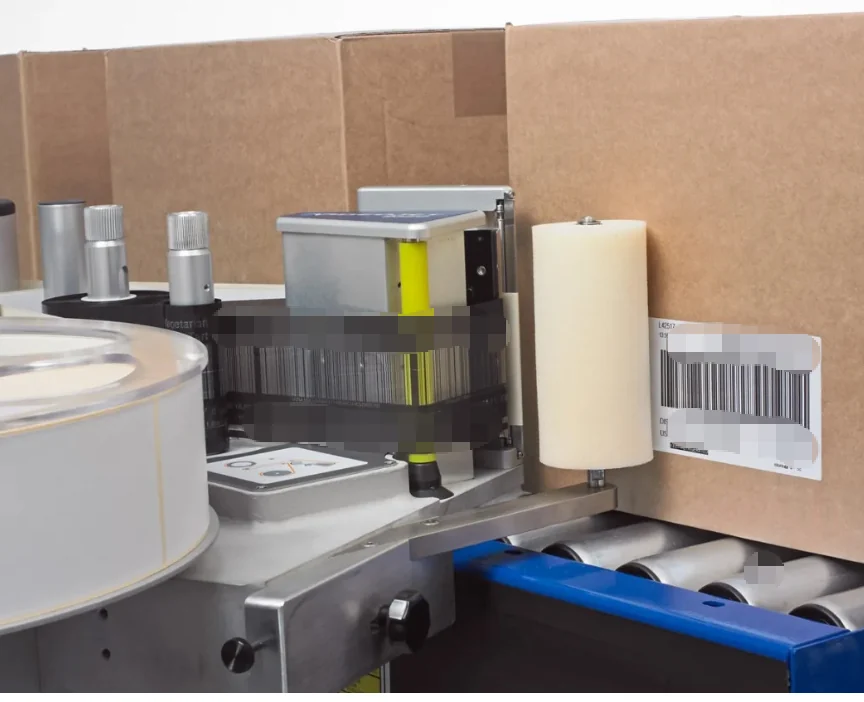

Labels are applied at the required position on the product or packaging. The operation can be combined with product identification, code reading and data verification.

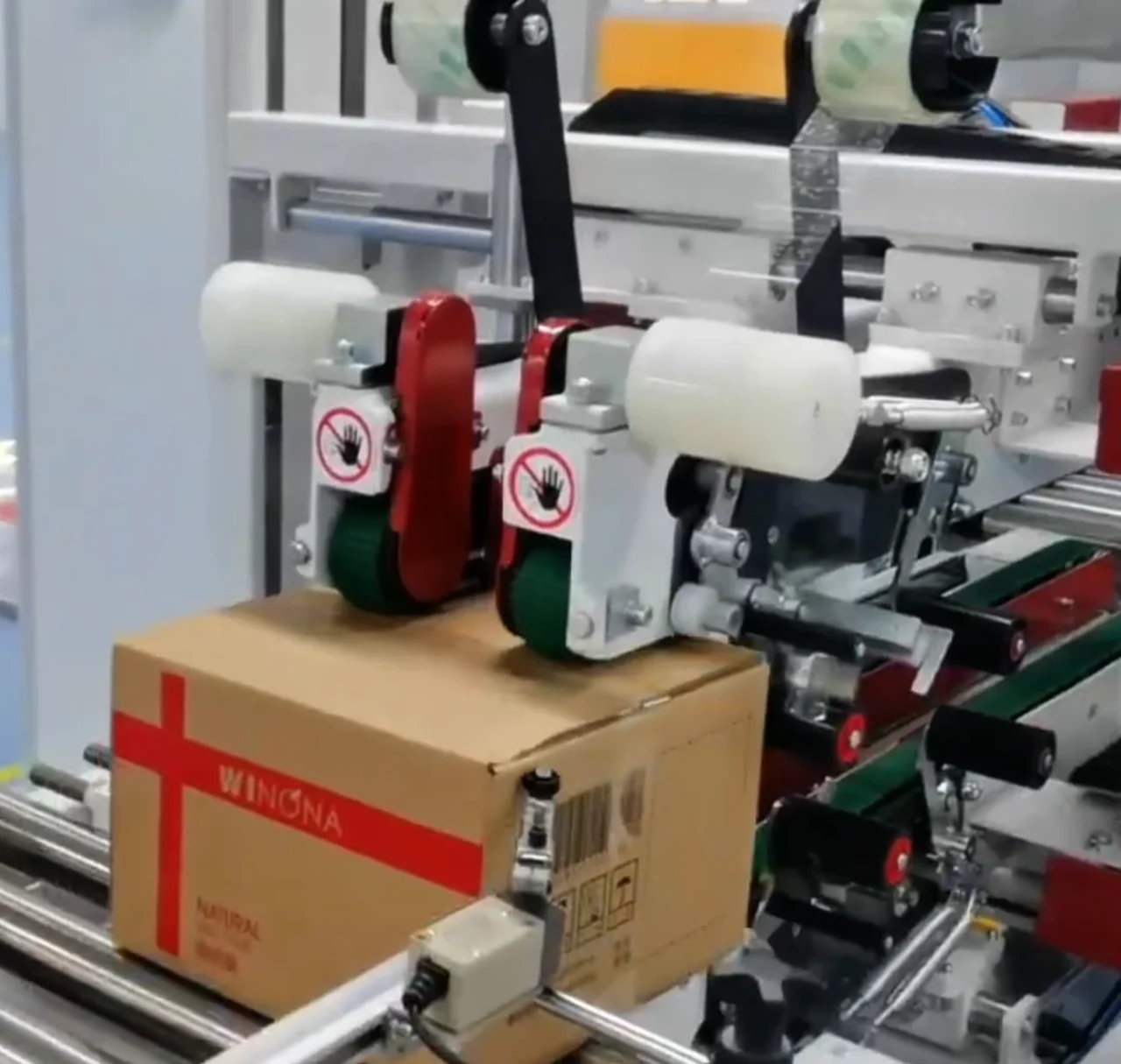

Filled cases are sealed according to the packaging requirements, with the operation coordinated with upstream and downstream conveying cycles.

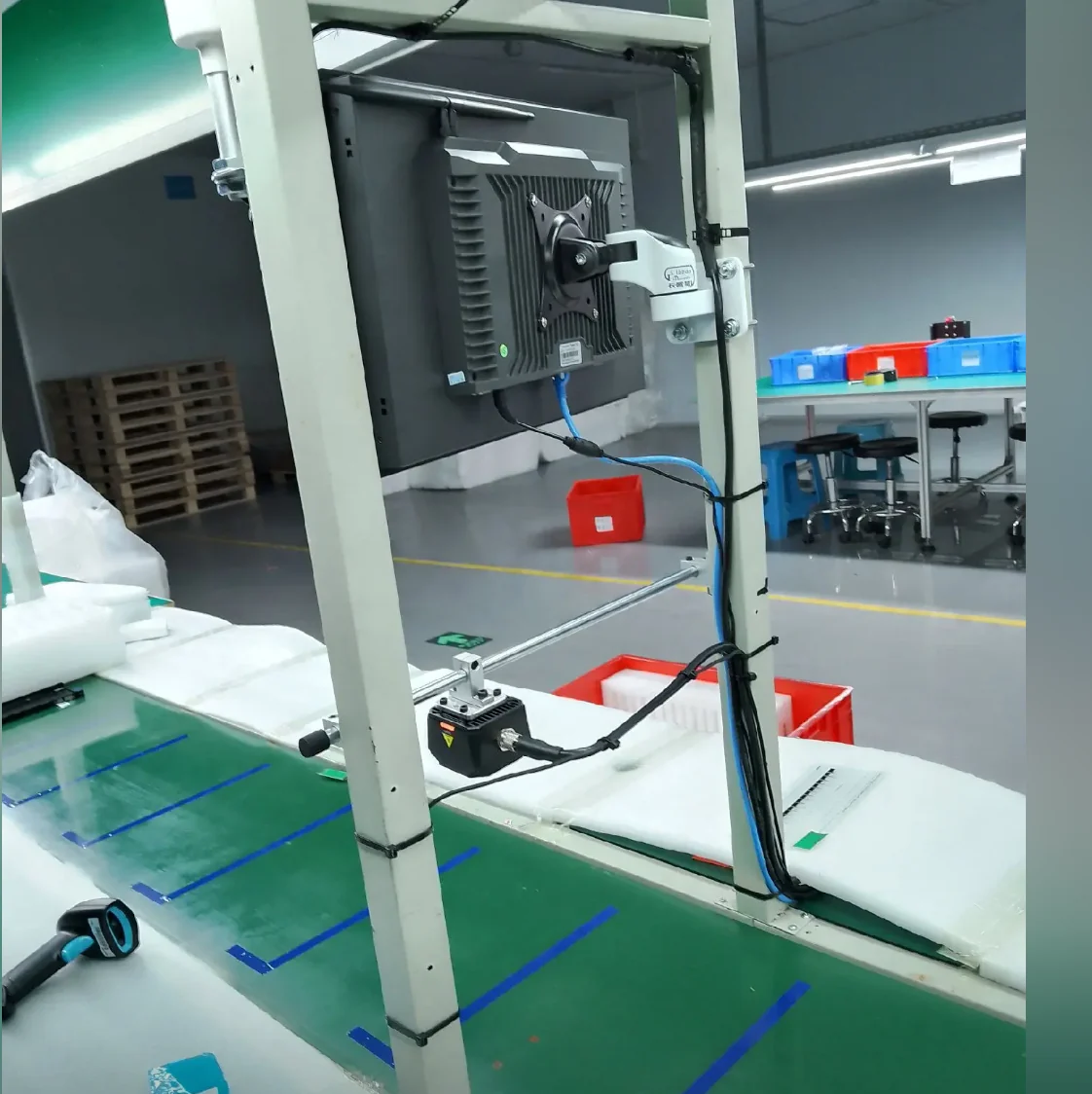

Barcodes, QR codes or other identification information are read to confirm product identity, packaging matches, label information or links to subsequent data.
Packaging state is checked according to project requirements, including presence, position, labels, barcodes, quantities or other packaging results. The focus is quality confirmation within the packaging process.
Packaged products, cases or handling units are conveyed to subsequent stations, inspection points, palletizing areas or pre-dispatch handling areas. The conveying method is selected to suit the product and packaging format.
Products are diverted according to product type, packaging result, destination or production logic. Multiple branch lines can also be merged into the next process.
Controlled temporary storage and waiting space balance cycle-time differences between packaging equipment, palletizing and downstream logistics.
Cases or packaged units are stacked on pallets according to the product, packaging format, pallet specification and stacking requirements. Robots or other automated palletizing methods can be used.
End-of-line equipment is connected with pre-dispatch conveying, warehouse interfaces, lifting equipment or other logistics stages so that finished goods can continue to downstream handling areas.
How the product is packaged
How packaged products continue through the production flow
Packaging and end-of-line equipment are defined by the product, packaging process, cycle time and downstream logistics requirements rather than a fixed equipment package.
Share your product, packaging format, cycle time and current production process, and we can start from the information currently available.
